Wiping Glands

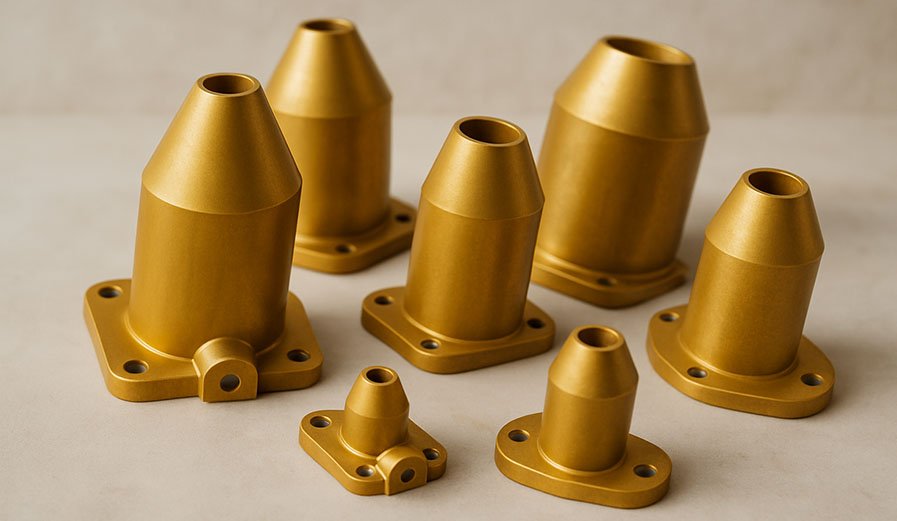

Reliable Brass Glands for Indoor Applications

Wiping Glands are specially designed for use with SWA, plastic, and rubber (elastomer) sheathed cables, offering dependable performance in dry indoor conditions. These glands ensure safe and secure termination with minimal cable movement.

Key Features

  • Brass BS 2874 Construction: Durable and corrosion-resistant material.
  • Standard Sizes Available: Z, X, and Y models suit various cable diameters.
  • Comes with Accessories: Hot dip galvanized mild steel clamp and neoprene gasket.
  • Indoor Use: Ideal for control panels, machinery, and other enclosed applications.
Wiping Glands Z

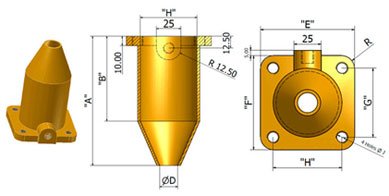

Wiping Gland “Z”

Wiping Gland Z Dimensions

Gland Size Dai. over metal sheath A B ØC ØD E F ØJ
Z 25 to 94 195 140 108 32 190 100 14
Wiping Gland X and Y

Wiping Gland “X” and “Y”

Wiping Gland X and Y Dimensions

Gland Size Dai. over metal sheath A B ØC ØD E F G H ØJ R
X 12 to 51 137 90 60 19 90 90 66 66 12 12
Y 25 to 78 155 95 108 32 114 123 95 86 14 14

We manufacture and export high-quality Wiping Glands tailored to customer specifications, drawings, and requirements.
