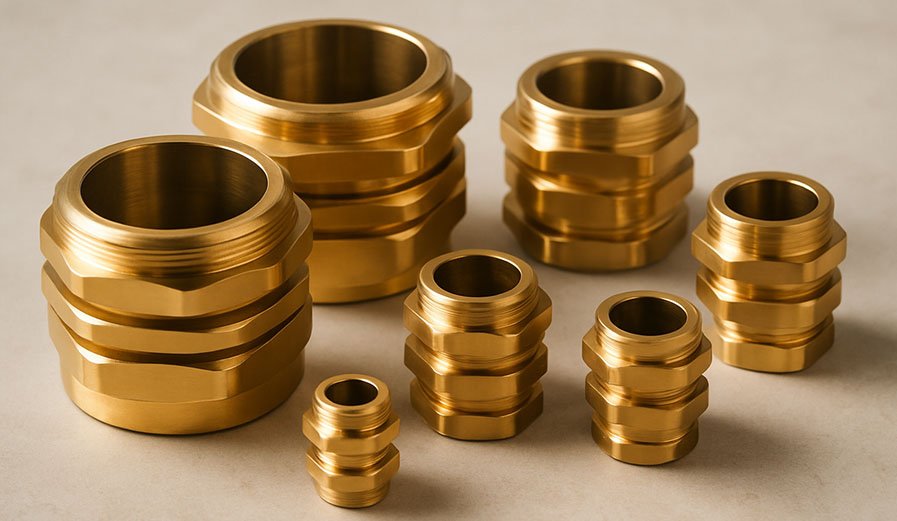

Brass G Type Gland or Alcho Glands
Precision Cable Termination for Indoor Installations
Brass G Type Glands, also known as Alcho Glands, are ideal for terminating armoured cable in dry indoor conditions. These glands offer secure clamping of the armour and ensure safe electrical continuity using an inner ring system. Designed for SWA, plastic, and rubber-sheathed cables, they combine safety and ease of installation.
Specification Table
| Size | Under Armour Dia. A (mm) | Overall Dia. B (mm) | Armour Wire Dia. C (mm) | ISO Thread D (mm) | ISO Thread E (mm) | Shroud Length F (mm) | Hex Flat G (mm) | Hex Corner H (mm) | Product Code |
|---|---|---|---|---|---|---|---|---|---|
| 204 | 15.8 | 15.8 | 0.90/1.25 | 20 | 10 | 24 | 22.00 | 24.9 | HG-204 |
| 206 | 21.0 | 21.0 | 0.90/1.25 | 20 | 10 | 25 | 27.00 | 30.0 | HG-206 |
| 254 | 23.8 | 23.8 | 1.25/1.60 | 25 | 10 | 26 | 31.7 | 35.7 | HG-254 |
| 256 | 27.2 | 27.2 | 1.25/1.60 | 25 | 10 | 28 | 37.6 | 42.2 | HG-256 |
| 323 | 33.2 | 33.2 | 1.60/2.00 | 32 | 10 | 25 | 47.3 | 53.6 | HG-323 |
| 326 | 39.2 | 39.2 | 1.60/2.00 | 40 | 15 | 25 | 48.4 | 54.6 | HG-326 |
| 405 | 39.9 | 39.9 | 1.60/2.00 | 40 | 15 | 36 | 50.0 | 57.0 | HG-405 |
| 503 | 51.6 | 51.6 | 2.00/2.50 | 50 | 15 | 36 | 58.0 | 64.2 | HG-503 |
| 505 | 52.6 | 52.6 | 2.00/2.50 | 50 | 15 | 30 | 65.0 | 71.2 | HG-505 |
| 606 | 61.0 | 61.0 | 2.50 | 63 | 15 | 40 | 71.0 | 77.5 | HG-606 |
| 753 | 71.3 | 71.3 | 2.50 | 75 | 15 | 40 | 85.0 | 95.0 | HG-753 |
| 755 | 78.0 | 78.0 | 2.50 | 75 | 15 | 40 | 98.0 | 109.2 | HG-755 |
