Brass E1W Brass Cable Glands

Brass E1W Brass Glands

Heavy-Duty Glands for Armoured Cables

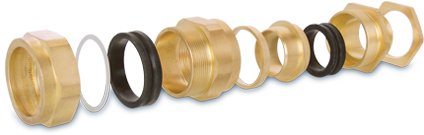

The Brass E1W Cable Glands are designed for use with SWA cables having extruded bedding. They provide IP66-rated sealing both on the outer and inner sheaths, ensuring secure, weatherproof, and explosion-proof performance in demanding industrial settings.

Ideal for

Industrial control panels
Hazardous area installations
Power plants and substations
Offshore platforms and rigs
Heavy machinery applications

Size	Under Armour Dia. A Max. mm	Overall Dia. B Max. mm	Armour Wire Dia. C mm	ISO Entry Thread Dia. Length		Approx Length from Shroud	Hexagon Size Across Across Flat Corners		Product Code
Size	Under Armour Dia. A Max. mm	Overall Dia. B Max. mm	Armour Wire Dia. C mm	D mm	E mm	Approx Length from Shroud	G mm	H mm	Product Code
16	8.60	13.50	0.90	16	10	40.00	20.00	23.00	HE1W-16
20 S	12.50	17.00	0.90/1.25	20	10	42.00	24.00	28.00	HE1W-20 S
20	14.40	20.50	0.90/1.25	20	10	42.00	27.00	31.00	HE1W-20
25 S	17.80	23.80	1.25/1.60	25	10	44.00	31.00	34.00	HE1W-25 S
25	20.40	27.00	1.25/1.60	25	10	45.00	34.30	38.50	HE1W-25
32	26.50	33.00	1.60/2.00	32	10	50.00	41.50	46.50	HE1W-32
40 S	31.00	37.00	1.60/2.00	40	10	51.00	45.00	50.00	HE1W-40 S
40	32.50	40.80	1.60/2.00	40	10	51.00	49.00	54.00	HE1W-40
50 S	37.80	48.00	2.00/2.50	50	15	55.00	58.00	65.00	HE1W-50 S
50	44.00	53.50	2.00/2.50	50	15	55.00	62.30	69.50	HE1W-50
63 S	50.50	60.50	2.50	63	15	59.00	70.00	78.00	HE1W-63 S
63	56.50	65.50	2.50	63	15	59.00	76.30	85.00	HE1W-63
75 S	62.50	72.00	2.50	75	15	64.00	85.00	95.00	HE1W-75 S
75	67.50	78.50	2.50/3.15	75	15	65.00	90.50	99.00	HE1W-75
90	80.00	94.00	3.15	90	20	75.00	112.00	125.00	HE1W-90
